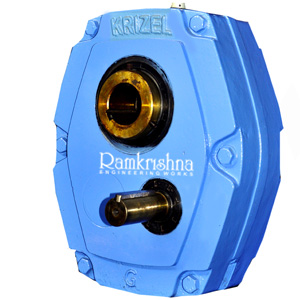

SMSR Gear Box

Make Enquiry

KRIZEL SHAFT mounted speed reducers are excellent quality control products and manufactured with excellent precision KRIZEL SMSR are very compact in design, totally enclosed designed for direct mounting on the drive shaft at the driven equipments. The direct mounting principle ensure positive and permanent alignment of the speed reduce and minimizing space requirement and layout problems. It also eliminates the foundations.

SALIENT FEATURES OF KRIZEL SHAFT MOUNTS ARE:

  • All Gears are of high grade alloy steel for higher efficiency.
  • Hardened and ground helical gear train.
  • Each unit supplied with corrosion resistant torque arm & double lip oil seals.
  • Torque arm, hub covers and puller ring supplied as standard accessories.
  • Severe duty grease purged seals on high speed shaft prevent leakage and subsequent drive failure.
  • Long gear and bearing lifetime due to heavier design.
  • All mounting positions possible.
  • Easy to mount, Space saving, Low noise level

KRIZEL SHAFT mounts are widely used in quarry and crushing plants, conveyor systems, asphalt plants, road construction machinery, special purpose machines, bakery machines, cement and mining industries etc.

Specifications

  • Model : Available in different sizes from AK to KK.
  • Ratios : Available in three ratios of 5:1 , 13:1 & 20:1
  • Power : Higher power rating for maximum torque from 0.25 kw to 100 kw.
  • Mounts : Vertical, horizontal and direct drive mounting configurations.
  • Lubrication : Oil splash type lubrication.
  • Housing : Cast iron case construction.

KRIZEL shaft mounted speed reducers are metric in design to meet any position requirements and satisfy a wide range of output speeds and horse power.

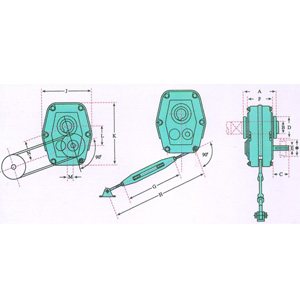

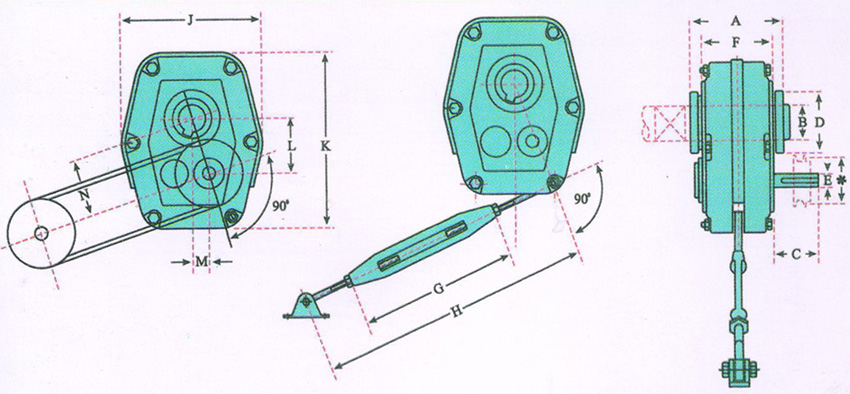

SIZEASTD HUB BORE BCDEINPUT SHAFT KEYWAYFGHJKLMNApproximate Mass Kg.
MAXMIN05 Ratio 13-20 Ratio
AK115305063145 x 3 x 48962006007501602076624701113
8K135306078165x3x501052006007501852257525791719
CK145406888226x3x601102006007502182699031952125
DK1545072%258 x 4 x 65118216700850253325no371163236
EK1665585115288 x 4 x 70130216700850280378125431334352
FK19265901303210 x 5 x 85150216700850324414141501505568
6K211751051454212x5x9017121675090036946815656166102109
HK243851161704814 x 5.5 x 10018922275090043554918962200135165
JK2581001352005516x6x11019822275090054370225575266195225
KK3251251862186018 x 7 x 170265222750900645840280100297400456
